Profiled conveyor belts are suitable for conveying powder, granular, small lump of materials at the gradient of no more than 40°, and can also convey packaged materials, widely used in coalmines, electricity, chemical industries, grains, etc.

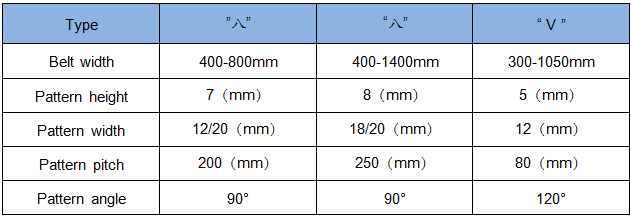

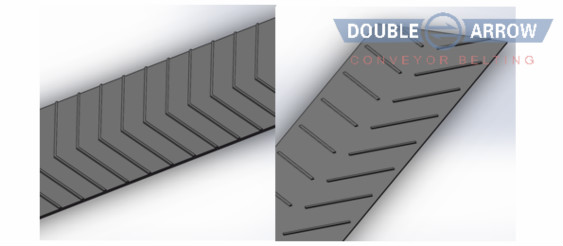

Pattern type: “八” shape, “V” shape, etc.

Note: It can be customized according to customers’ requirements.

In accordance with ISO14890-2013 standard

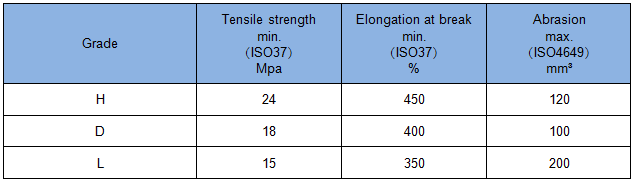

The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
